Icn 2s110 Sc Wiring Diagram

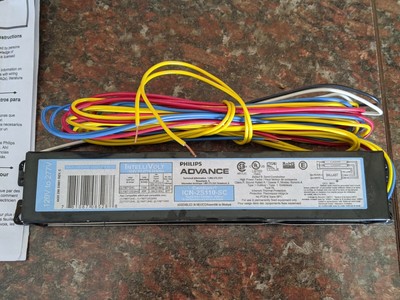

Icn 2s110 sc 277v brand name centium ballast type electronic starting method rapid start lamp connection series input voltage 120 277 input frequency 50 60 hz.

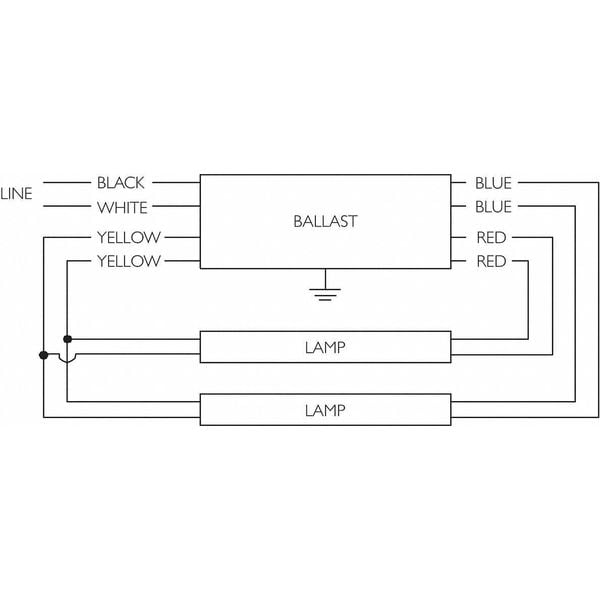

Icn 2s110 sc wiring diagram. No matter what the conditions require operating at a variety of line voltages between 120v to 480v whether located in high ambient temperature environments requiring a 90 c rating or not our family of philips advance centium ballasts are ideal for a wide variety of applications. Black 25 63 5 white 25 63 5. Electronic ballast start type rapid lamp type t12 lamps ballast family centium tm number of lamps 1 or 2 voltage 120 277 light output high min. 20 degrees f amps ac 1 60 to 0 69 input watts 190 194 wiring type series ballast factor 0 89 power factor greater than 0 98 total harmonic distortion less than 10 percent length 9 1 2 in width 1 11 16 in height 1 3 16 in.

Black 25 63 5 white 25 63 5. Advance centium icn 2s110 sc 2 lamp f96t12 ho 120 277 volt rapid start 0 89 ballast factor this electronic fluorescent ballast operates 2 f96t12 ho lamps at 120 277 input volts. Icn 2s110 sc 277v brand name centium ballast type electronic starting method rapid start lamp connection series input voltage 120 277 input frequency 50 60 hz. The wiring diagram that appears above is for the lamp type denoted by the asterisk standard lead length inches in.
